Portable Respirometer SN6
Biological diagnosis in the field: the first step towards AI control

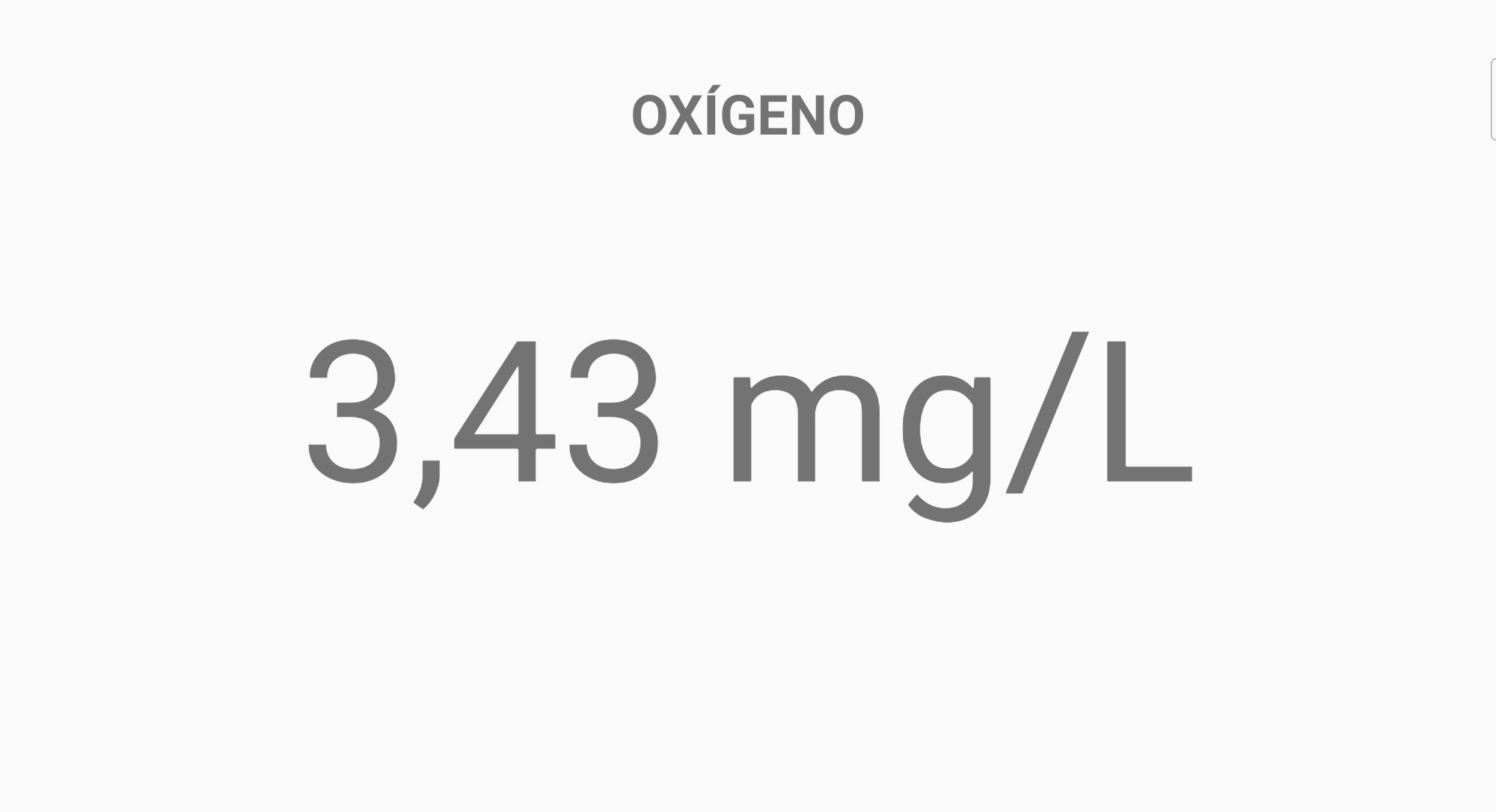

The SN6 is a portable respirometer for on-site assessment of biomass condition (autotrophic and heterotrophic bacteria) and discharge control. It is the diagnostic tool to find out a plant’s improvement potential before implementing online control with SN8 + AI. It includes oxygen, temperature, pH and Redox probes.
Tests and Parameters
By means of the SN-6 respirometer, the following tests are performed, which provide the following parameters automatically:
- TEST OUR (Global Respirometry): OUR, SOUR.
- AUR TEST (Nitrification rate): AUR, SAUR.
- TOX TEST (Toxicity): % Inhibition
- DENITRIFICATION TEST: NUR
- COD TEST (COD fractionation) : biodegradable COD and rapidly biodegradable COD
These results are used to estimate the improvement potential before implementing SICAIR or SICTOX: how much aeration is wasted, how much nitrification capacity remains and how the biomass responds to discharges.
Applications
- TOXICITY. Discharge detection.
- Diagnosis prior to AI aeration control (SICAIR).
- NITRIFICATION and DENITRIFICATION optimisation.
- Plants with DILUTION effects.
Why respirometry + AI
The activated sludge process is slow: any decision takes days to show its effect. That is why it is key to detect problems as early as possible and get it right from the start.
Physical or chemical measurements are not enough: you need direct information from the biomass and how the wastewater affects it. That is exactly what the SN6 measures. And our proprietary machine learning models learn from that respirometry to anticipate each plant’s behaviour, instead of reacting once the problem has already arrived.
SN6 advantages
- Transportable, light, robust, easy to use and ergonomic.
- Low-maintenance sensors.
- Toxicity tests.
- Reproduces the process under real conditions.
- Process optimisation: oxygen requirements, nitrification rates and capacity.
- Starting point for AI: quantifies the savings potential before implementing SICAIR or SICTOX.
Features

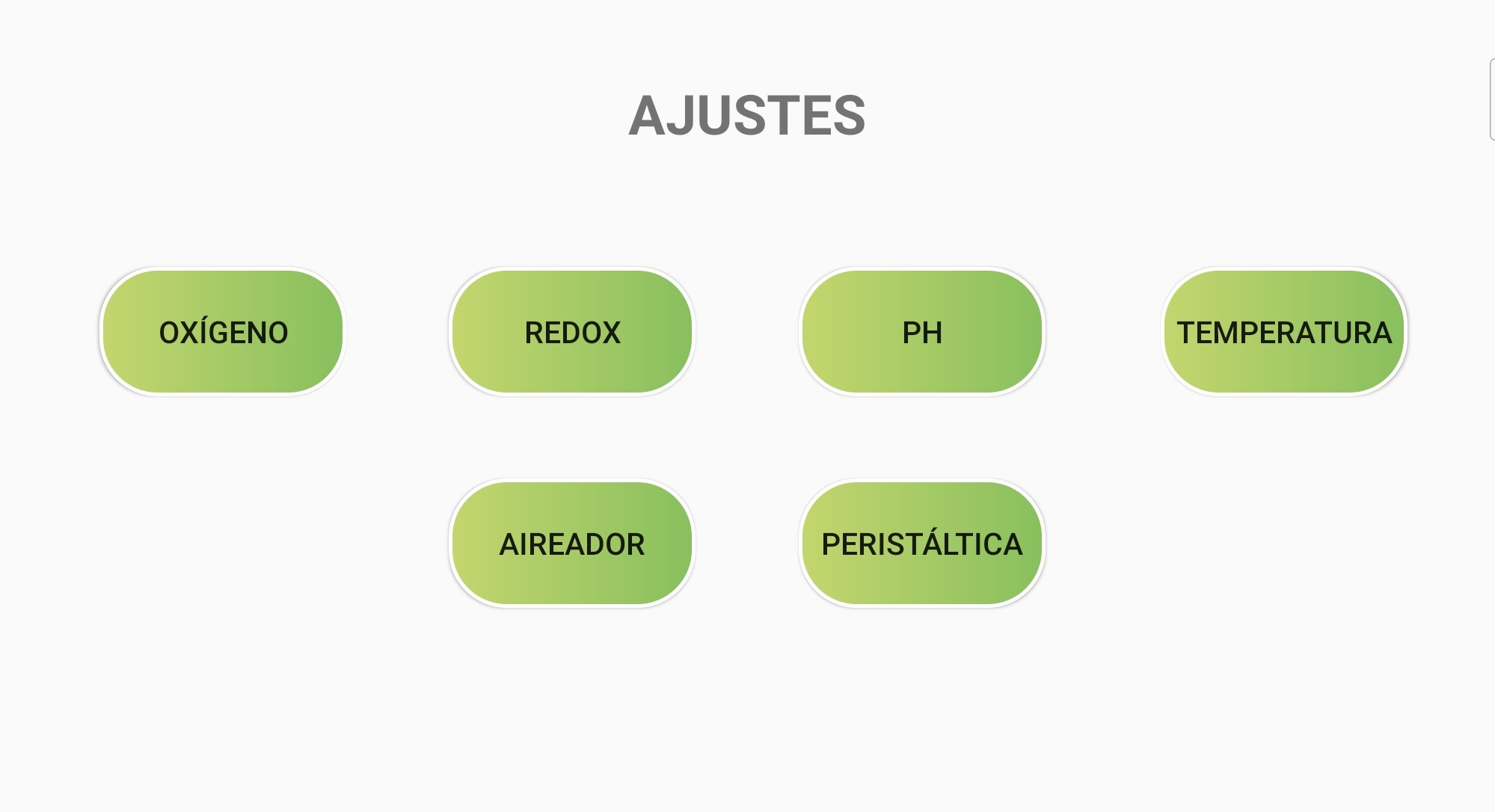

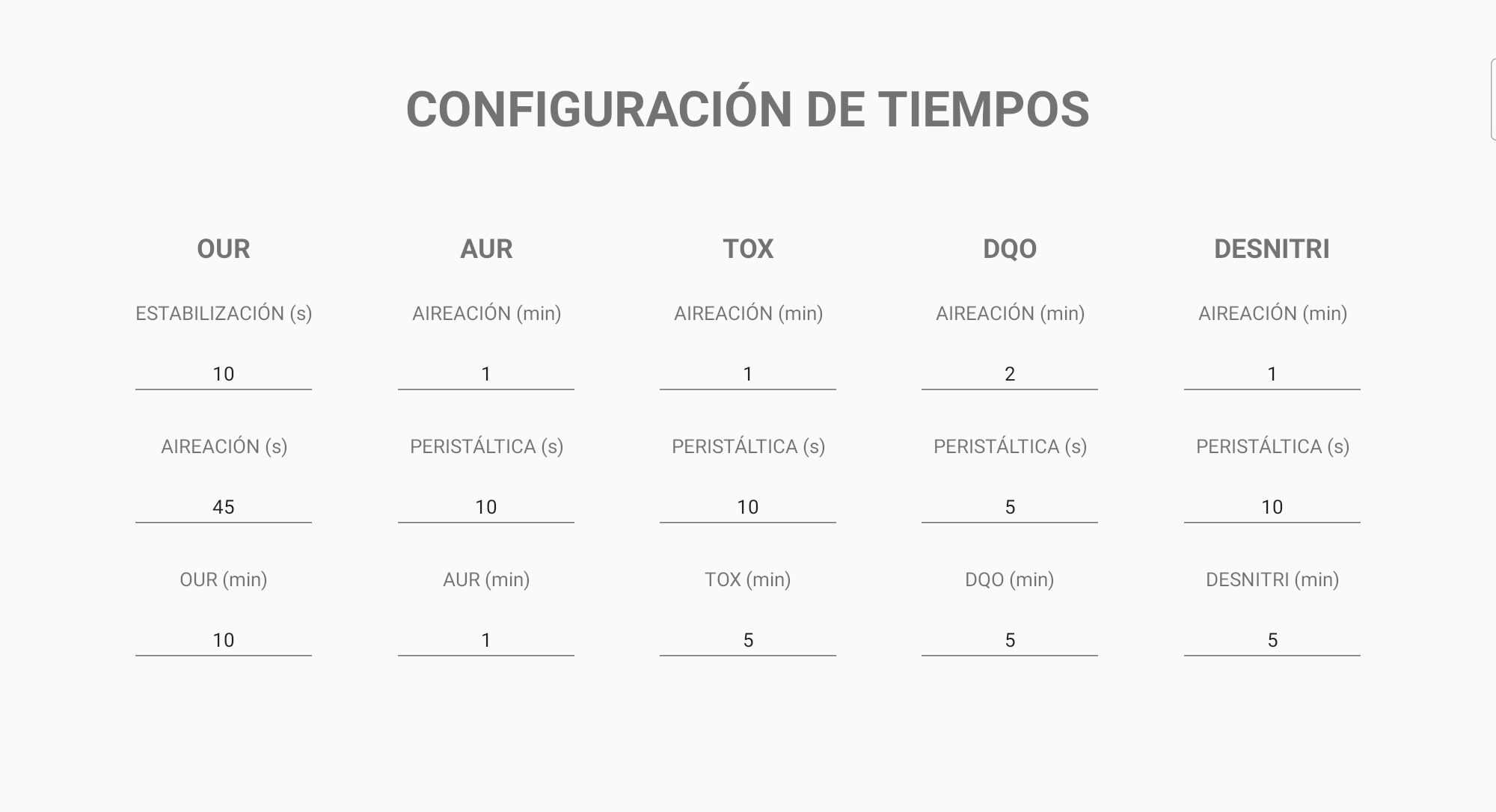

- User interface: SN6 PC app (Windows 10/11), also accessible from the browser of any PC or tablet on the network.
- Automatic calculation of OUR/SOUR, Rsn/AUR, etc.

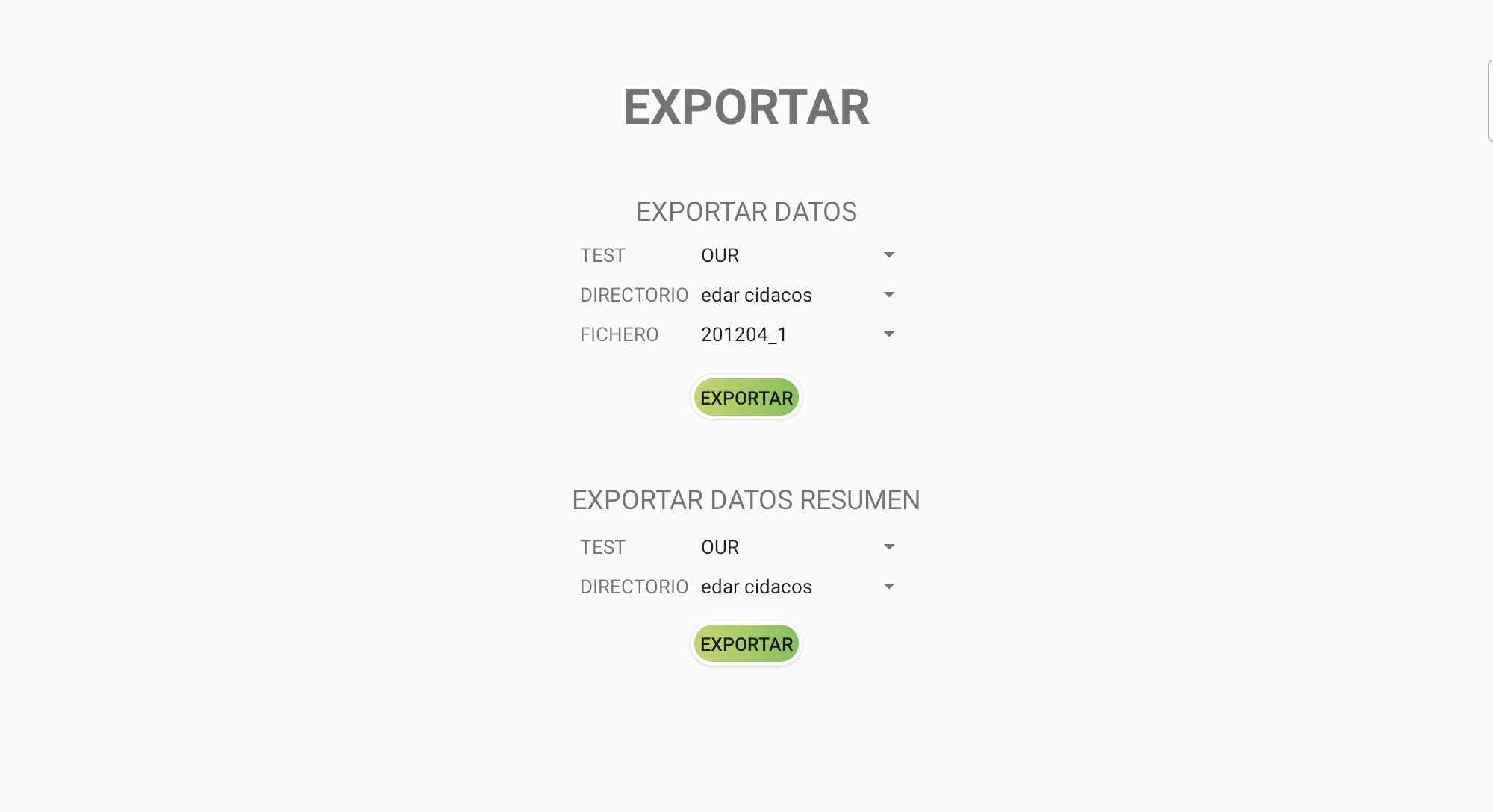

- PDF and Excel report for every test and automatic export of results to the LIMS.
- Sample ID with barcode reader.
- Data history and probe verification with traceable records.

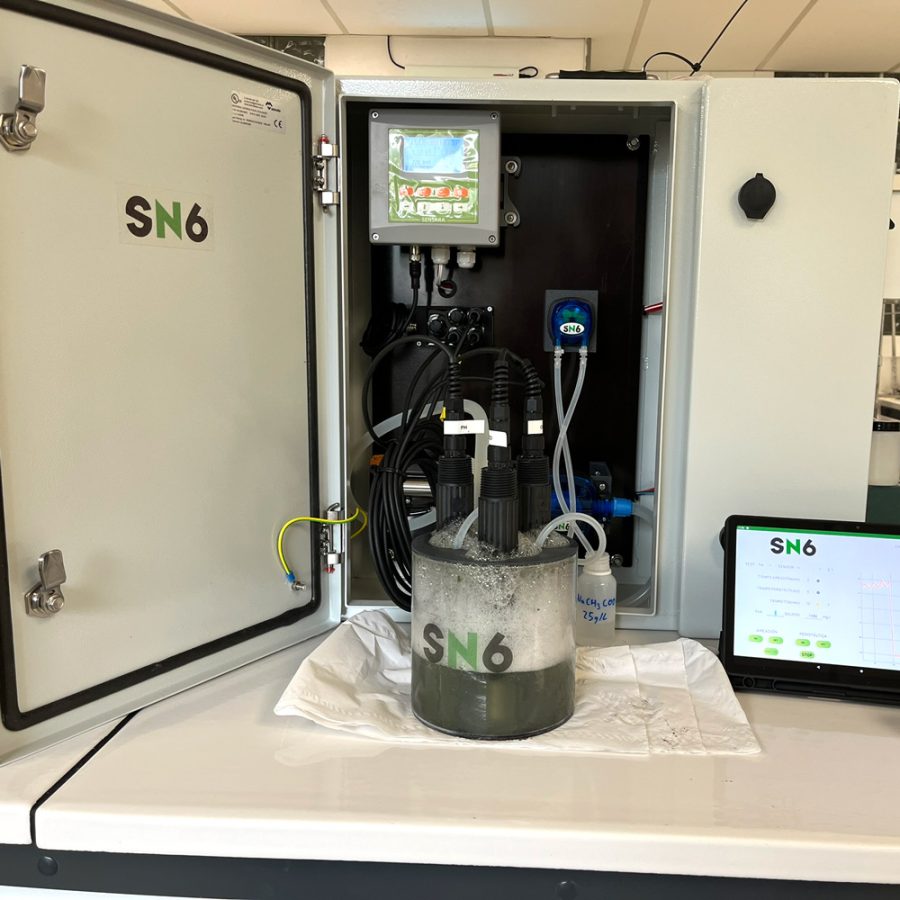

- Portable aluminium cabinet 600×600 mm.
Electrical and software specifications
- Power supply 220 V 50 Hz.

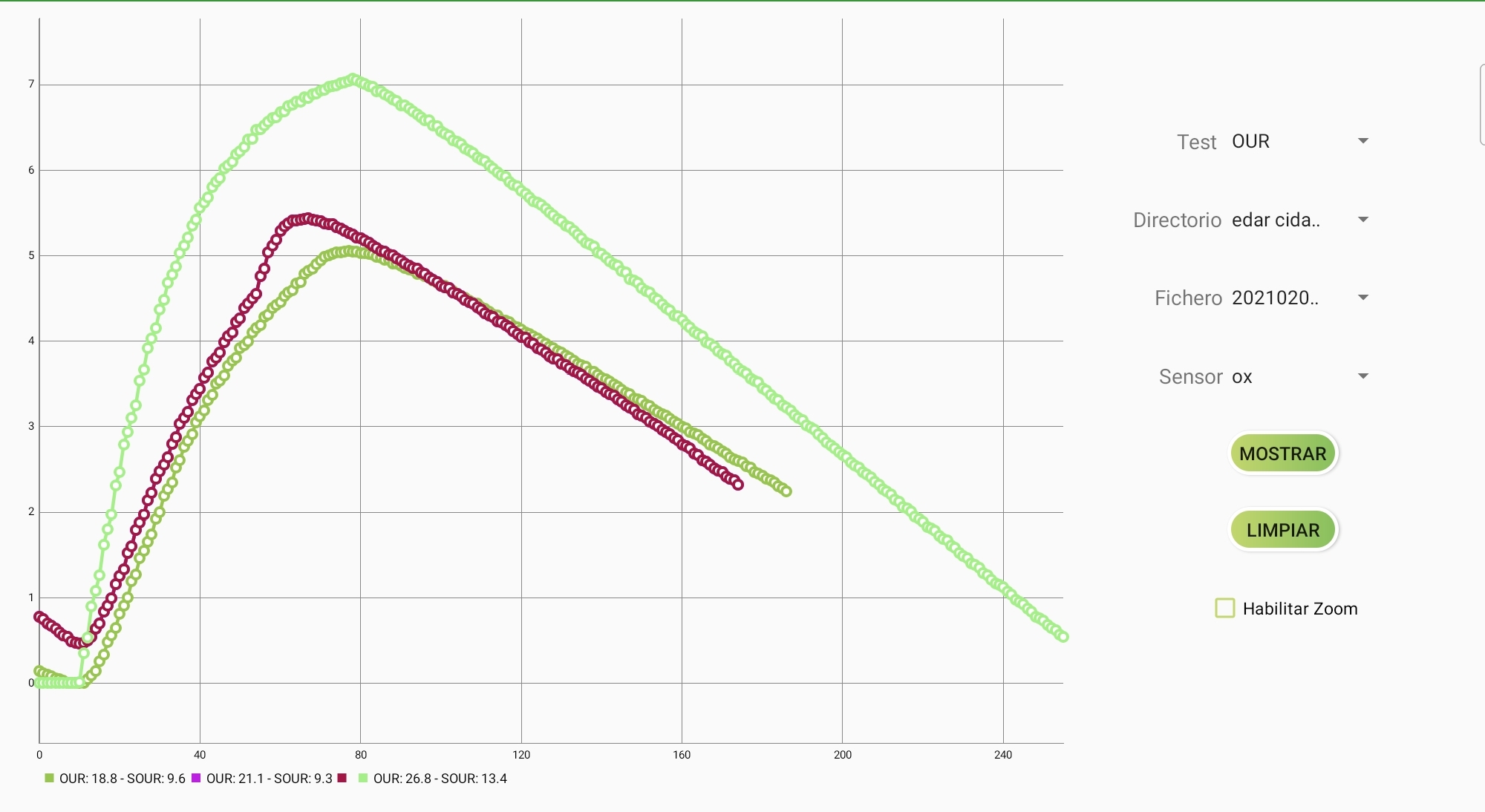

- Data logging and real-time graphs.
- Export of results to PDF and Excel.
- PC app for Windows 10/11 (64-bit).
- Browser access (Edge or Chrome) from any PC or tablet on the network.
- Interface and help in Spanish, Portuguese and English.
SN6: biological diagnosis for wastewater treatment plants
SN6 Summary of Benefits and Specifications
Key Benefits:
- Portability and robustness: light, transportable and robust unit designed for on-site use.
- Low maintenance: oxygen, pH, temperature and Redox probes with minimal maintenance.
- Versatile testing: toxicity, nitrification, denitrification and COD fractionation.
- Foundation for AI: quantifies the savings and improvement potential before implementing SICAIR or SICTOX.
- Realistic reproduction: simulates real biological process conditions with direct information from the biomass.
- Timely decisions: detects problems early and helps get it right from the start.
Technical Specifications:
- Tests that can be performed:
- OUR/SOUR (Overall Respirometry), AUR (Nitrification Rate).
- TOX (% Inhibition), Denitrification and COD Fractionation.
- Applications:
- Toxicity, nitrification and denitrification control.
- Optimization of aeration and nutrient dosing.
- Design and Technology:
- Intuitive interface: SN6 PC app, also accessible from a browser on a PC or tablet.
- Automatic calculation and data export software.
- Portable aluminum cabinet (600x600 mm).
- Electrical Specifications: 220 V 50 Hz power supply, data logging and graphing.
